Checkbox

Checkboxes allow users to select one or multiple options from a list, making them essential for forms, settings, and filtering systems. They provide a simple yet effective way for users to toggle preferences, confirm agreements, or apply multiple selections at once.

Go back

Checkbox

Go back

Checkbox

A well-designed checkbox ensures clarity, accessibility, and ease of interaction, improving usability across desktop and mobile experiences.

When to use

✅ Multiple selections
✅ Binary toggles
✅ Task completion
✅ Form preferences

When not to use

⛔️ For single-choice selections
⛔️ For primary actions
⛔️ If a switch is more appropriate

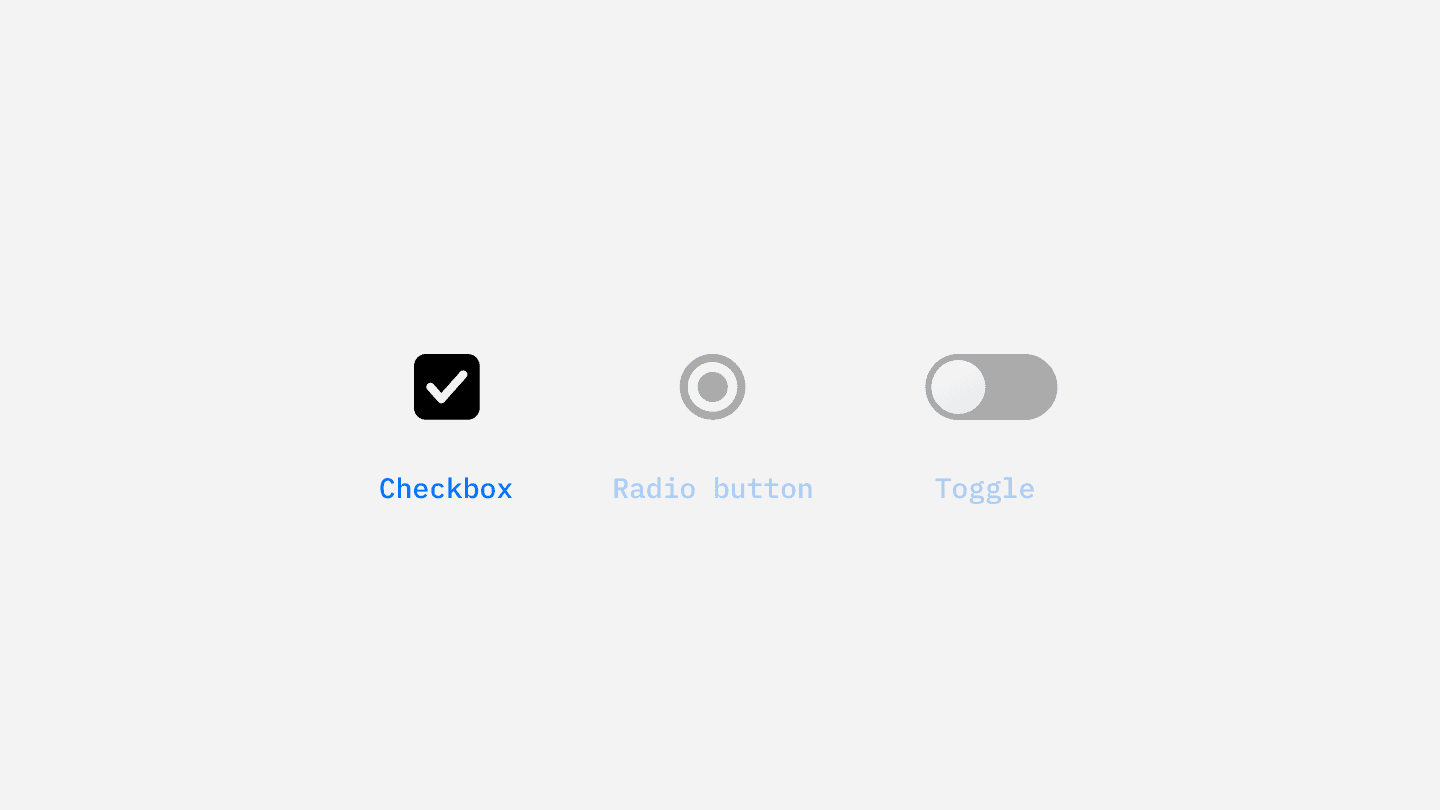

A UI component comparison featuring three selection controls: a checkbox, a radio button, and a toggle switch. The checkbox is active, displayed as a black square with a white checkmark, and labeled “Checkbox” in blue. The radio button and toggle switch are inactive, shown in gray with labels “Radio button” and “Toggle” in light gray, indicating they are disabled or not selected. The design visually distinguishes between different selection methods in a user interface.

Checkbox states & behavior

Checkboxes should always provide clear visual feedback based on user interaction.

State	Behavior
Unchecked	Default state before user interaction.
Checked	Selected state when a user chooses the option.
Indeterminate	Used for mixed states (e.g., parent checkboxes in nested lists).
Disabled	Gray-out state when the checkbox is inactive.

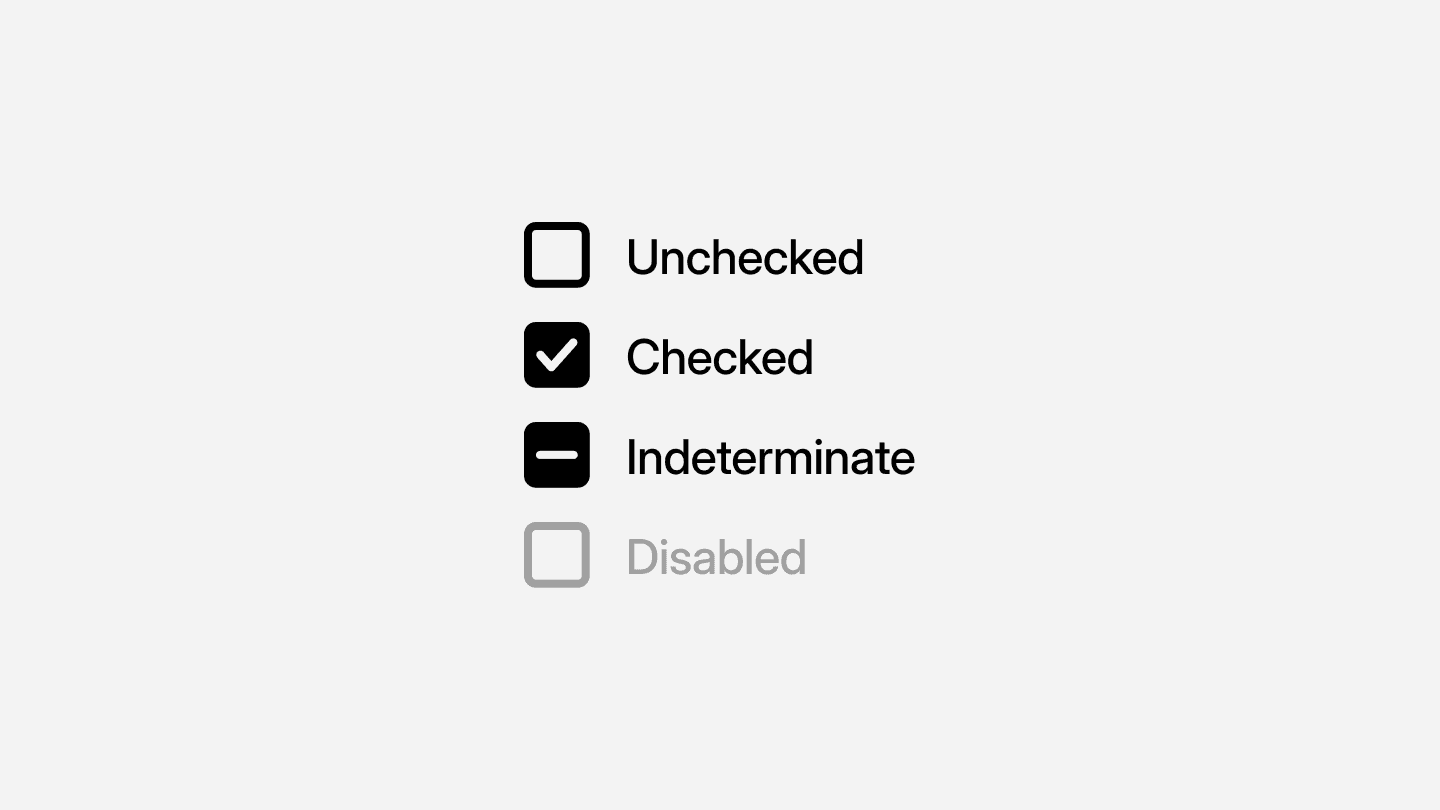

The image displays four different checkbox states. The first checkbox is an empty square, representing an unchecked state. The second is a black square with a white checkmark, indicating a checked state. The third is a black square with a white horizontal line, signifying an indeterminate state. The fourth is a gray-outlined checkbox with gray text, representing a disabled state. Each checkbox is accompanied by a label describing its state. The design clearly differentiates between interactive and non-interactive elements.

Checkboxes should have large enough touch targets (at least 44x44px) to ensure easy interaction on mobile devices. Labels should always be clickable, so users can select a checkbox by clicking the text as well.

<label>
  <input type="checkbox" name="option1">
  Enable notifications
</label>

For better accessibility and keyboard navigation, ensure that checkboxes are properly labeled and follow standard HTML structures.

Accessibility considerations

Keyboard Support – Users should navigate checkboxes using the Tab key and toggle them using Spacebar.
ARIA Attributes – Use aria-checked="true/false" for screen reader compatibility.
Focus States – Provide clear focus outlines when checkboxes are selected.
Sufficient Contrast – Checkbox borders and labels should have strong contrast against the background for readability.

<input type="checkbox" id="subscribe" aria-checked="false">
<label for="subscribe">Subscribe to newsletter</label>

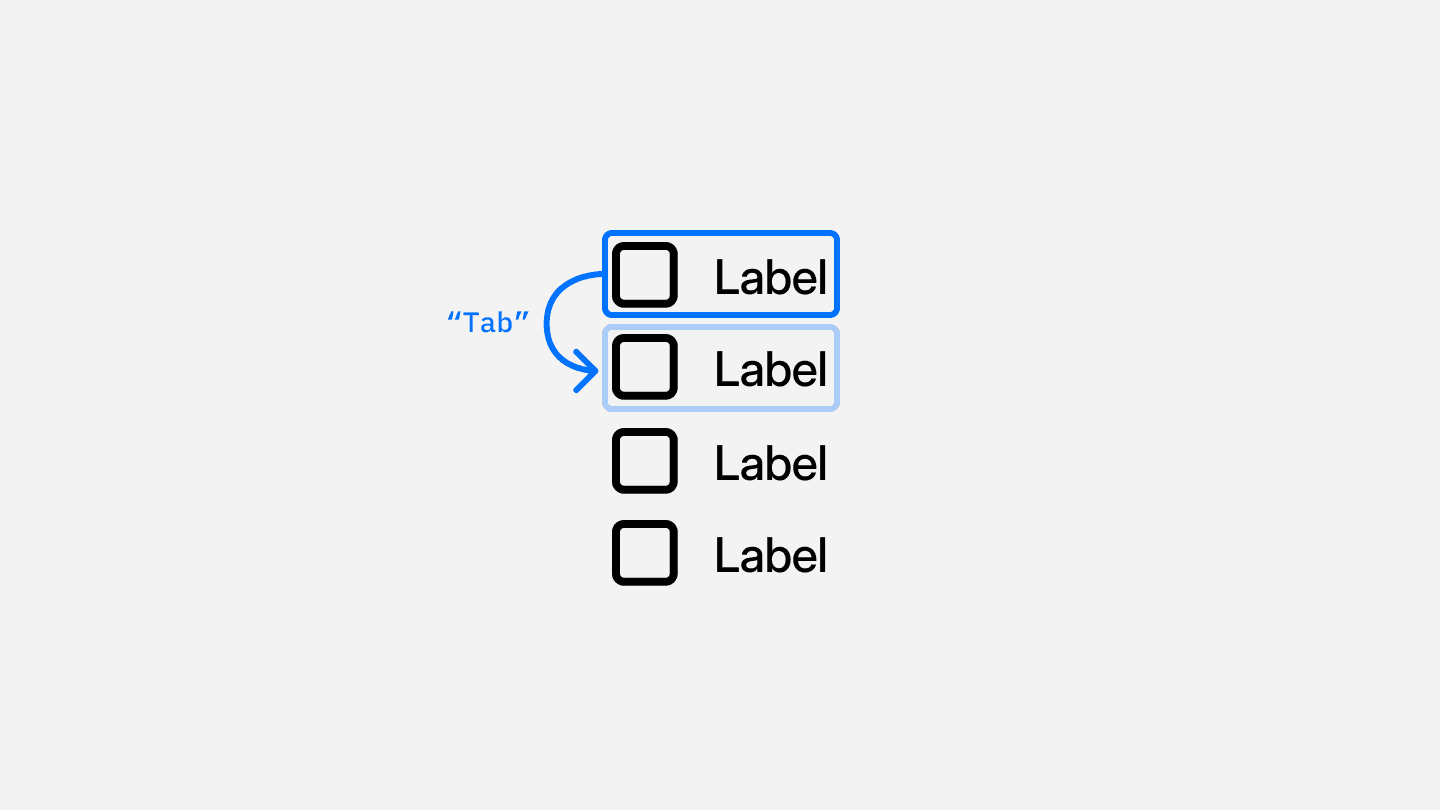

A vertical list of checkboxes with labels. The top two checkboxes have a blue outline, indicating focus or selection, with an annotation labeled “Tab” and an arrow pointing between them. The remaining checkboxes appear unselected. The annotation suggests a potential design issue where the checkboxes resemble tab navigation rather than standard checkbox interactions.
